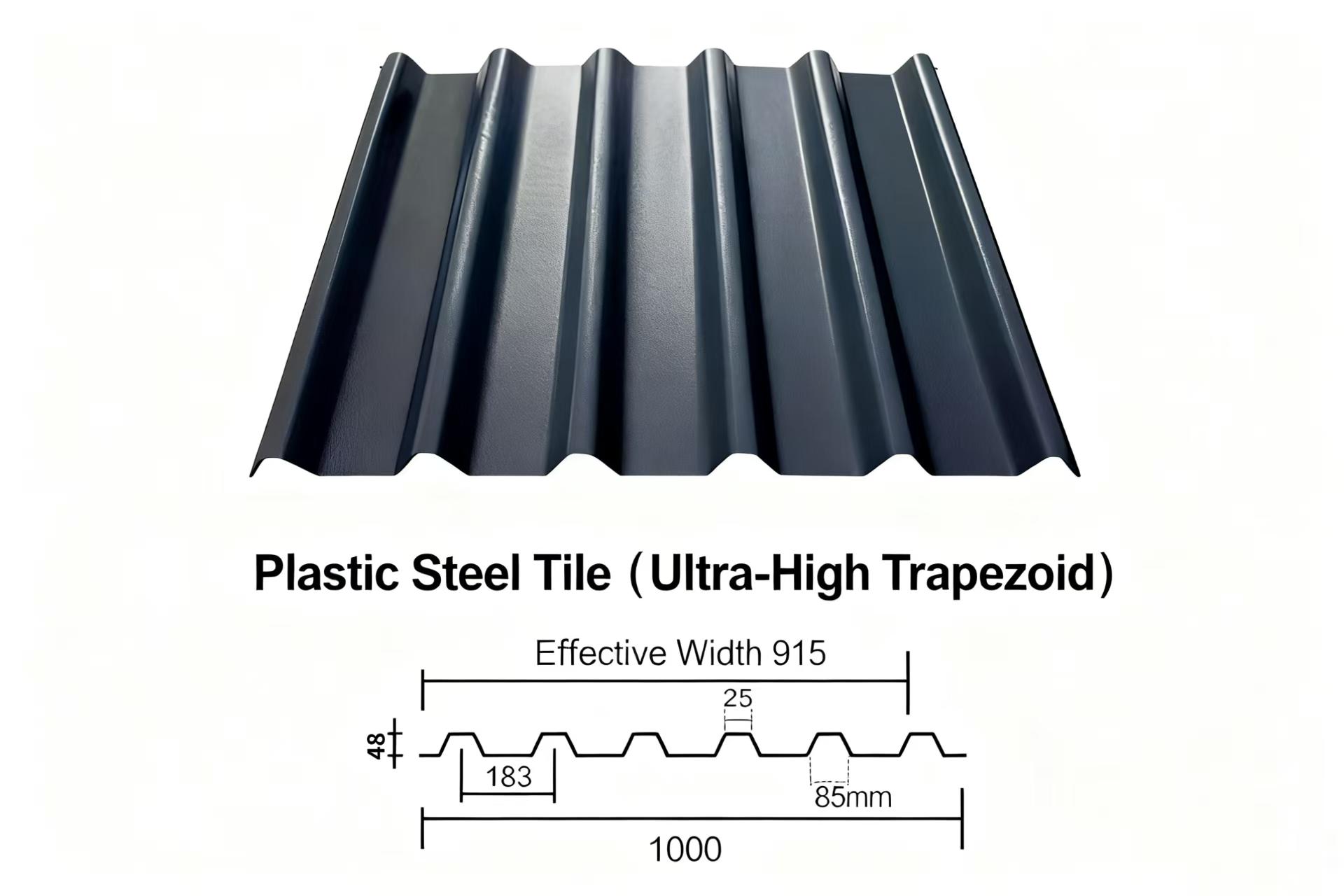

Thickness: 0.5mm - 1.5mm
Width: 1000mm, 1050mm, 1100mm (common widths, customizable as needed)
Length: Customized based on project requirements, typically ranging from 3m to 12m, with a maximum length of 15m
Wave Height: 50mm, 60mm, 70mm, 80mm (customizable as needed)
Large Industrial Plants: Such as heavy industrial production workshops, large warehouses, and factory roofs.
Steel Structure Buildings: Such as airports, stadiums, exhibition halls, and other large-span structural roofs.
Commercial Buildings: Such as supermarkets, commercial centers, shopping malls, and roofs of large-scale buildings.
Agricultural Buildings: Such as modern greenhouses and livestock facilities.
Transportation Infrastructure: Such as railway stations, subway stations, and roof systems of large transportation hubs.
Adaptability to Large Spans:
The ultra-high trapezoidal waveform design enhances the tile's load-bearing capacity in large-span structures, effectively reducing the need for steel support frameworks.
Excellent Waterproofing:
The unique waveform design improves the tightness of tile seams, minimizing water infiltration and enhancing the roof's waterproof performance.
Wind and Earthquake Resistance:
Designed to meet the demands of high-wind and seismic regions, the ultra-high trapezoidal plastic-steel tiles offer superior wind pressure and earthquake resistance.
Strong Corrosion Resistance:
The surface is treated with high-quality galvanization, aluminum-zinc coating, or color coating, effectively resisting corrosive substances in the atmosphere and extending the product's service life.
Lightweight and High Strength:
Compared to traditional roofing materials, ultra-high trapezoidal plastic-steel tiles are lighter, reducing the structural load on buildings while maintaining high strength to ensure roof safety.
Ultra-High Waveform Design: The elevated peaks and valleys significantly improve the tile's load-bearing capacity, bending resistance, and waterproofing performance.
High-Strength Material: Made from premium high-strength steel plates, ensuring long-term stability and durability even in harsh environments.
Aesthetic Appeal: The ultra-high trapezoidal waveform not only enhances structural stability but also modernizes the building's appearance.
Diverse Color Options: Available in a variety of colors, customizable to project requirements, meeting the design needs of different architectural styles.
Pre-Installation Preparation:
Inspect the stability of the roof frame structure to ensure its load-bearing capacity meets the weight requirements of the ultra-high trapezoidal plastic-steel tiles.
Clean the roof substrate to ensure a flat surface, free from debris or contaminants that may affect installation.
Determine the direction of tile placement based on the roof slope and drainage design requirements.
Installation Steps:
Confirm the starting position for tile installation according to the design drawings, beginning with the ridge tiles.
Lay the ultra-high trapezoidal plastic-steel tiles sequentially, ensuring the peaks and valleys of each tile are aligned.
Secure the tiles using specialized screws, adjusting the screw spacing according to the tile specifications and roof structure.
Apply sealant or waterproof tape at the seams to ensure waterproof performance.
After installation, inspect all seams to verify proper sealing and absence of leaks.
Maintenance:
Regularly check the roof for water accumulation and remove leaves, debris, and other obstructions to maintain drainage efficiency.
Promptly clean surface stains and inspect the waterproof layer and screw connections for integrity.
During transportation, avoid direct sunlight, rain, and other environmental factors that may compromise the quality of the tiles.
Use waterproof tarps or protective films to shield the tiles from moisture, preventing surface rust or coating detachment.
Ensure transport vehicles are stable to prevent damage caused by vibrations, collisions, or other impacts during transit.
Ultra-high trapezoidal plastic-steel tiles should be stored in a dry, well-ventilated area free from corrosive substances. Prolonged storage in humid or rain-prone environments should be avoided.
It can be transported by sea, land, and air, usually through container transportation
Storage Requirements:
Tiles should be stacked horizontally to prevent deformation or damage due to improper stacking.
For long-term storage, regularly inspect the surface coating of the tiles to ensure no signs of rust or corrosion.
Avoid direct contact with the ground; use supports or wooden pallets to elevate the tiles and prevent moisture infiltration.
